Quick Detail:
- Tested according to IEC62133 standard
- Electric automotive level grade AAA lithium cells are used
- quality BMS monitors each cell of high reliability
- Compact in size and light in weight
- Good low temperature performance : -20℃ can release 70% rated capacity
Description:

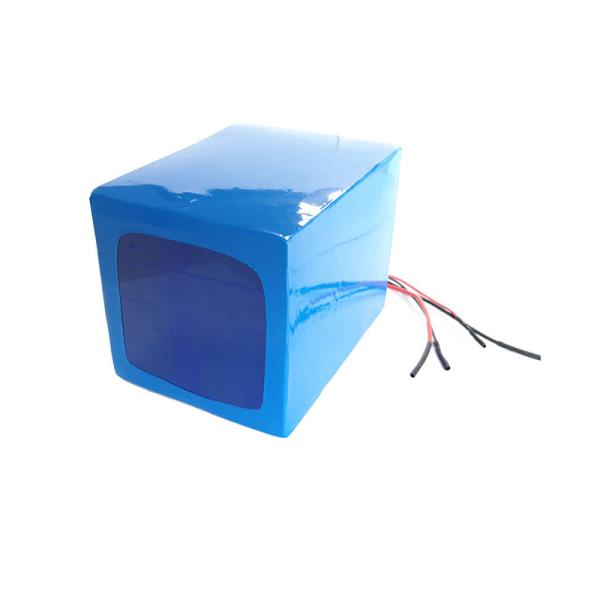

Square 24V 20Ah Scooter Lithium Power Battery Pack IEC62133 Tested
This battery pack is a NMC battery pack composed of 56pcs 18650 2500mah cells via 7S8P. It is suitable for power motor ≤500W. The dimensions can be custom design.
Compared with the same capacity lead-acid battery, NMC battery is 1/3 smaller in size, 2/3 lighter in weight, 2 times longer in cycle life, more compact, lighter and durable.
For international trade, different countries have different requirements to the imported products. Common documents / certificates such as MSDS, UN38.3, CE, BIS certificates, etc can be applied according to different customers' requirements.
Specifications:
| Items | Technical Parameters | Remarks |
| Standard voltage | 24V | |
| Standard capacity | 20Ah | 0.2C discharge rate |
| Resistance | ＜120mΩ | |
| Standard charge current | 0.2C (2A) | |
| Max charge current | 0.5C (5A) | |
| Standard discharge current | 1C | |
| Max discharge current | 3C | |
| Over-current protection | YES | |
| Dimensions | 280*128*42mm | |
| Weight | ＜5Kg | |
| Charge/discharge port | see remarks below | |
| Charing mode(CC/CV) | standard | 0.2C×5.5 hrs.(reference value) | |
| fast | 0.5C×2.5 hrs.(reference value) | |
| Working temperature range | charge | 0℃~+45℃ | |
| discharge | -20℃~+55℃ | |
| Storage Temperature Range | -40℃~+40℃ | |
| Storage environment humidity | 5%～90% RH | |
Applications:
Electric bike, electric scooter, golf cart, electric boat, vacuum cleaner, electric mower, wind/solar energy storage ...
Remarks:
Battery connectors are optional. Please choose the connector type below or give us your specified connector model!
DC Output Connectors:
AC Input Plugs:
We will choose the AC plug according to your country if no request is given.
Why Choose YM POWER?
1) More than 10 years' experience in lithium ion battery field and strong R&D ability including not only lithium batteries, but also motor, motor cotroller, inverter, etc
2) Strict management system and quality control: Small order production factory is ISO9001 certificated and mass order production base is TS16949 certificated. We do 100% inspection before shipment.
3) Products are MSDS/CE/UN38.3 etc approved.
4) A professional experienced team to provide you high-quality service. All enquires will be replied in 24 hours.
5) Competitive price help you to occupy more market share.
6) We offer 1-3 years warranty policy. Up to now, our product defective rate is under 0.4%.
